Desktop CO2 Marking Machine

Name: Desktop CO2 Marking Machine
Brand: RISHI PACKAGING
Price: 225000.0 INR
Availability: InStock

Price 225000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Desktop CO2 Marking Machine Specification

Marking Area
110 mm x 110 mm / 200 mm x 200 mm (Optional)

Marking Speed
7000 mm/s (Max)

Condition
New

Laser Type
CO2 RF Metal Tube

Cooling Mode
Air Cooling

Control Software
PC

Accuracy
0.01 mm

Power
30W / 40W / 60W (Optional)

Dimensions
Approx. 900 mm x 600 mm x 800 mm (L x W x H)

Wavelength
10.64 m

Operating Life of Laser Source
20,000 hours

Working Environment
10-35C, Humidity: 20-80% non-condensing

Operating System
Windows XP/7/8/10 supported

Repeatability
0.01 mm

Application Materials
Non-metals such as plastic, leather, fabric, wood, acrylic, glass, ceramics

Galvanometer Scanner
High-speed digital galvanometer

Minimum Line Width
0.1 mm

Input Voltage
220V / 50Hz

Minimum Character Size
0.2 mm

Cooling System
External Chiller Included

Supported Formats
AI, PLT, DXF, BMP, JPG, TIF, etc.

Interface
USB

Focus Method
Manual / Optional Autofocus

Net Weight
Approx. 90 kg

Desktop CO2 Marking Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Days

About Desktop CO2 Marking Machine

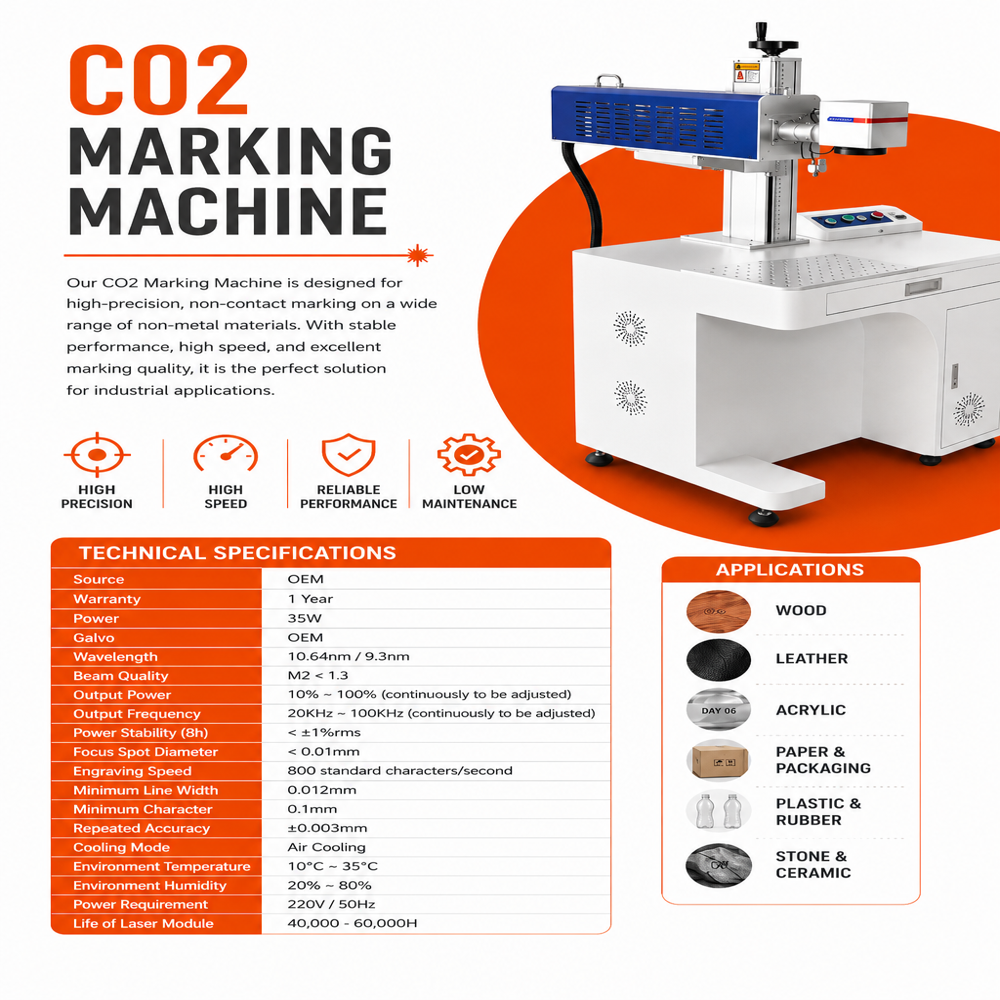

Product Title
Desktop CO Marking Machine High Precision NonMetal Marking Solution

Product Overview

Our CO Marking Machine is designed for highprecision, noncontact marking on a wide range of nonmetal materials. With stable performance, high speed, and excellent marking quality, it is the perfect solution for industries requiring permanent, reliable, and costeffective marking.

This machine is widely used in wood, leather, acrylic, paper, plastics, rubber, stone, and ceramics, making it a versatile choice for packaging, manufacturing, and decorative applications.

Technical Specifications

Specification	Details
Source	OEM
Warranty	1 Year
Laser Power	35W
Galvo	OEM
Wavelength	10.64 nm / 9.3 nm
Beam Quality	M < 1.3
Output Power	10% 100% (continuously adjustable)
Output Frequency	20 KHz 100 KHz (continuously adjustable)
Power Stability (8h)	< 10 rms
Focus Spot Diameter	< 0.01 mm
Engraving Speed	800 standard characters/second
Minimum Line Width	0.012 mm
Minimum Character Size	0.1 mm
Repeated Accuracy	0.003 mm
Cooling Mode	Air Cooling
Operating Temperature	10C 35C
Operating Humidity	20% 80%
Power Requirement	220V / 50Hz
Laser Module Life	40,000 60,000 hours

Key Features

High Precision: Fine, detailed markings with excellent repeatability.
High Speed: Engraves up to 800 characters per second.
Reliable Performance: Stable output with long laser life.
Low Maintenance: Aircooled system ensures easy upkeep.
Versatile Applications: Works on multiple nonmetal materials.

Applications

Wood & Leather Branding, decorative designs, and logos
Acrylic & Paper Packaging Batch coding, barcodes, and product details
Plastic & Rubber Permanent identification and traceability
Stone & Ceramic Artistic engraving and industrial marking

Why Choose Us?

OEM Pricing & Customization Available
Durable design with long service life
Strong aftersales support and training
Trusted by industries for packaging and nonmetal marking solutions

High-Precision Marking Technology

The machine's CO2 RF metal tube and high-speed digital galvanometer scanner ensure ultra-fine marking capabilities. With a minimum line width of 0.1 mm and accuracy up to 0.01 mm, it's ideal for detailed designs and text, catering to applications that demand sharp and legible marking on non-metals.

Versatile and User-Friendly Operation

Supporting numerous file formats, the marker operates smoothly on Windows operating systems. With a simple USB interface and straightforward software, both beginners and experienced users can navigate the system with ease. The external chiller and robust air-cooled laser guarantee stable performance even during continuous operation.

Adaptable for Diverse Industries

Whether for small-scale production, prototyping, or large manufacturing lines, this machine's adjustable power options (30W/40W/60W) and multiple marking area choices suit anyone needing flexibility. The durable design and 20,000-hour laser operating life make it a reliable investment for importers, exporters, manufacturers, and traders.

FAQ's of Desktop CO2 Marking Machine:

Q: How do I operate the Desktop CO2 Marking Machine?

A: Operation is straightforward: connect the machine to your Windows PC via USB, import your design file (AI, PLT, DXF, BMP, JPG, TIF, etc.) into the provided control software, adjust the focus (manually or with optional autofocus), and start the marking process. The external chiller and air cooling system ensure the laser remains at optimal temperature throughout use.

Q: What materials can I mark with this machine?

A: This desktop CO2 marking machine is designed for non-metallic materials, including plastics, leather, fabric, wood, acrylic, glass, and ceramics. It delivers precise and clean results on a wide range of non-metal surfaces.

Q: When should I use manual focus versus autofocus?

A: Manual focus is standard and sufficient for many routine jobs. However, for high-variation or intricate marking tasks, the optional autofocus ensures consistent focus across different item heights, facilitating optimal results in less time.

Q: Where is the ideal environment to install the machine?

A: Install the machine in an environment with temperatures between 10C and 35C, and humidity levels of 20%-80% (non-condensing). Ensure good ventilation, a stable 220V/50Hz power supply, and ample space for the machine's dimensions (approx. 900 mm x 600 mm x 800 mm).

Q: What is the process for cooling and maintaining the laser source?

A: The CO2 laser source is cooled by a combination of air cooling and an included external chiller. Regularly check the chiller and keep air vents unobstructed to maximize the laser's operational lifespan, which is up to 20,000 hours.

Q: How does this machine benefit manufacturers and traders?

A: Offering high marking speeds (up to 7000 mm/s), excellent repeatability (0.01 mm), and long operational life, this system enables efficient throughput, consistent product quality, and low maintenance demands, making it a cost-effective solution for any production or supply operation.
